Behind every great beer is a “breathing” biogas factory
Part 1 — The Challenge
Project: Hainan · Sanya · Blue Ribbon Beer plant
Capacity: 100 m³/day brewery effluent
Tough conditions:
· High COD, high organic load — fermentation liquor eats ordinary tanks in months
· Coastal salt spray + intense sunlight — standard coatings peel in 2 years
· Tight schedule — “fast, stable, no rework” non-negotiable
The proven route is UASB / CSTR + Double Membrane Biogas Holder — clean discharge and biogas recovery in one system.

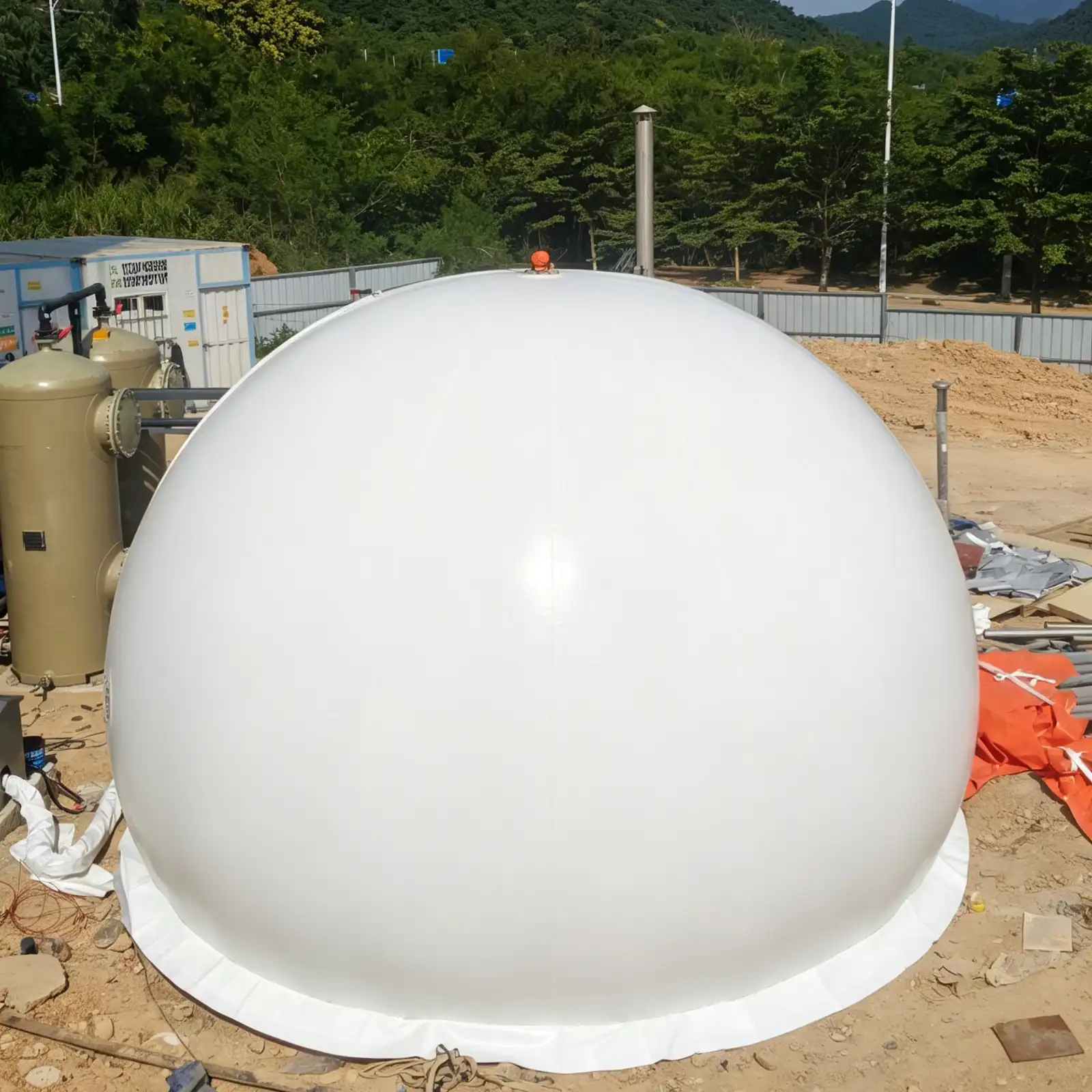

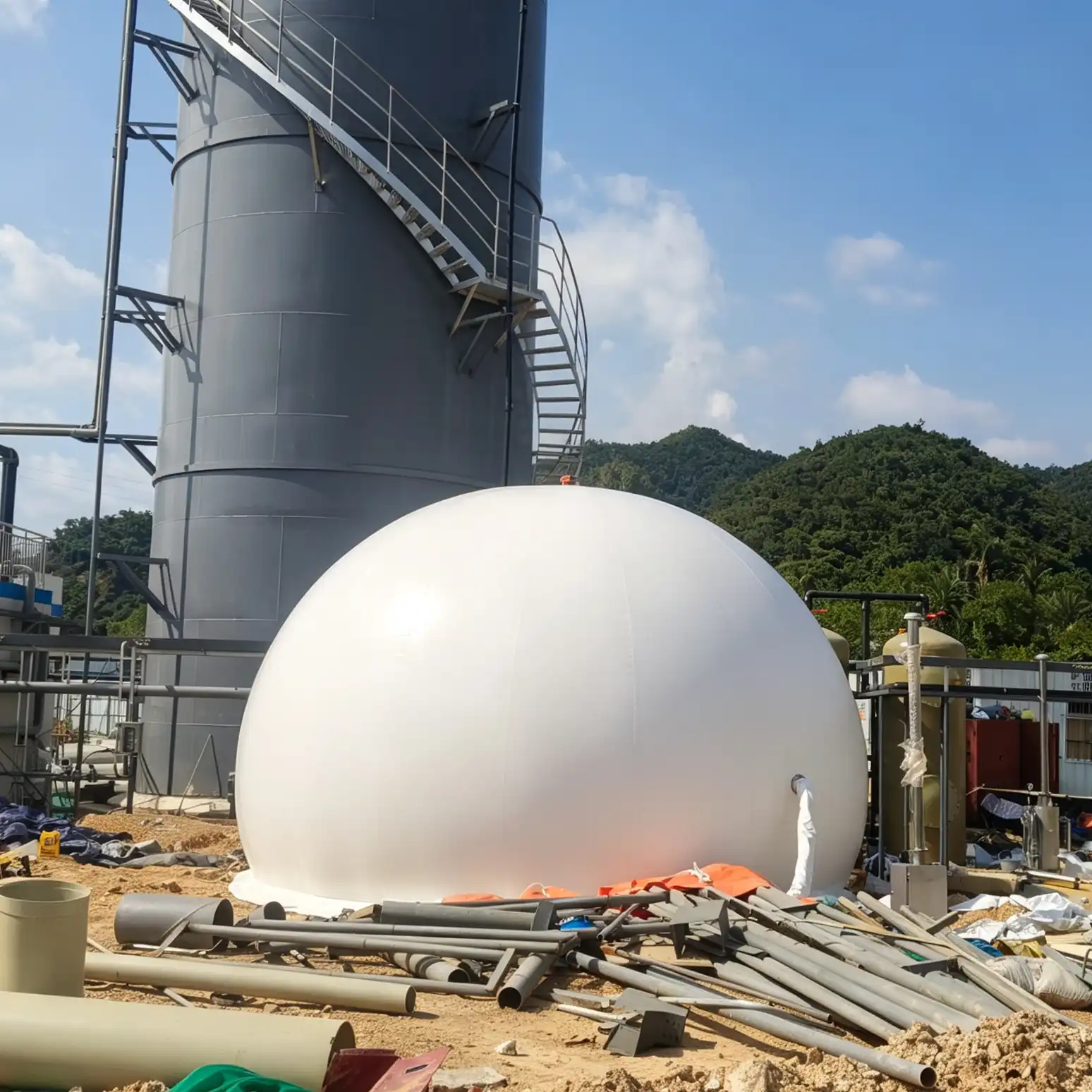

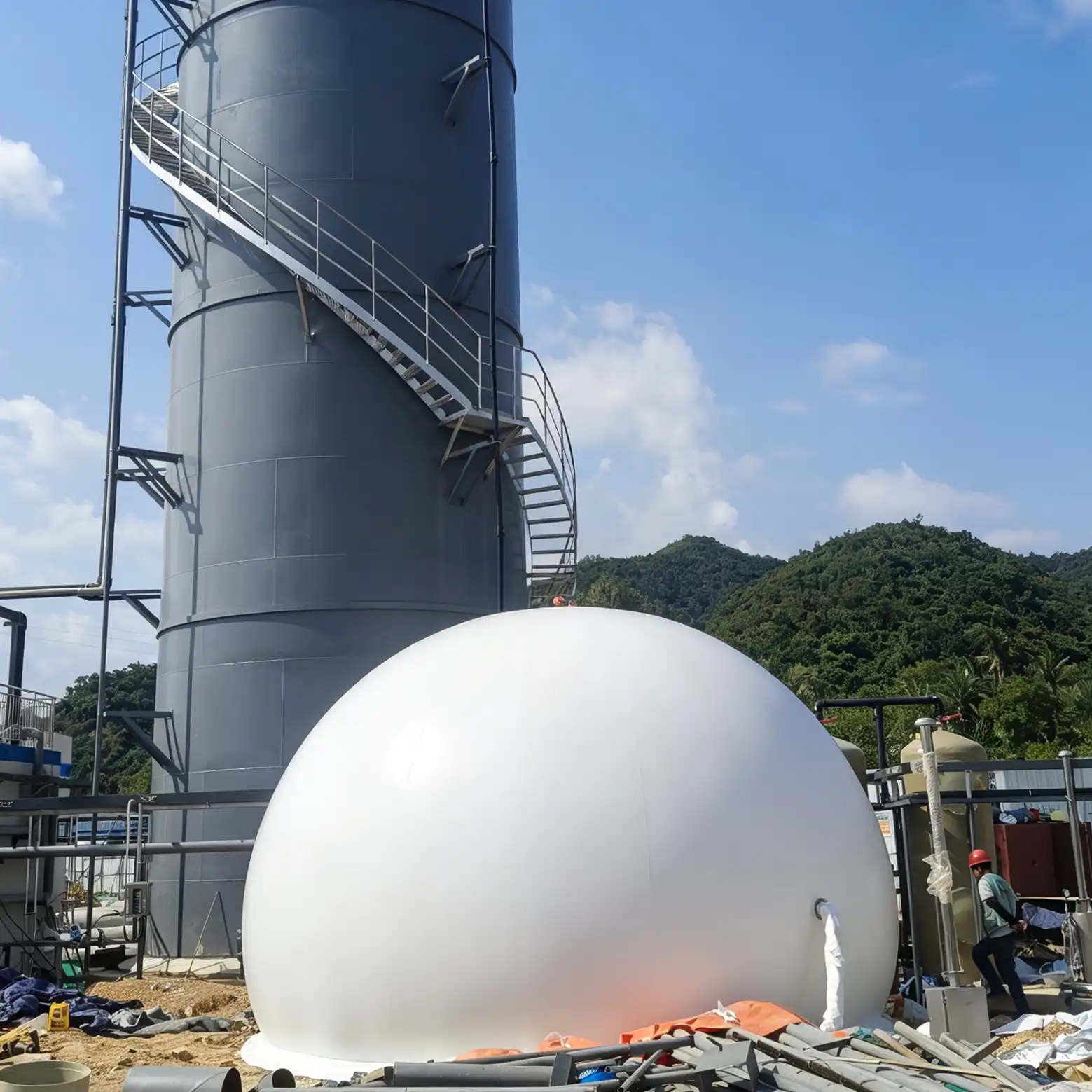

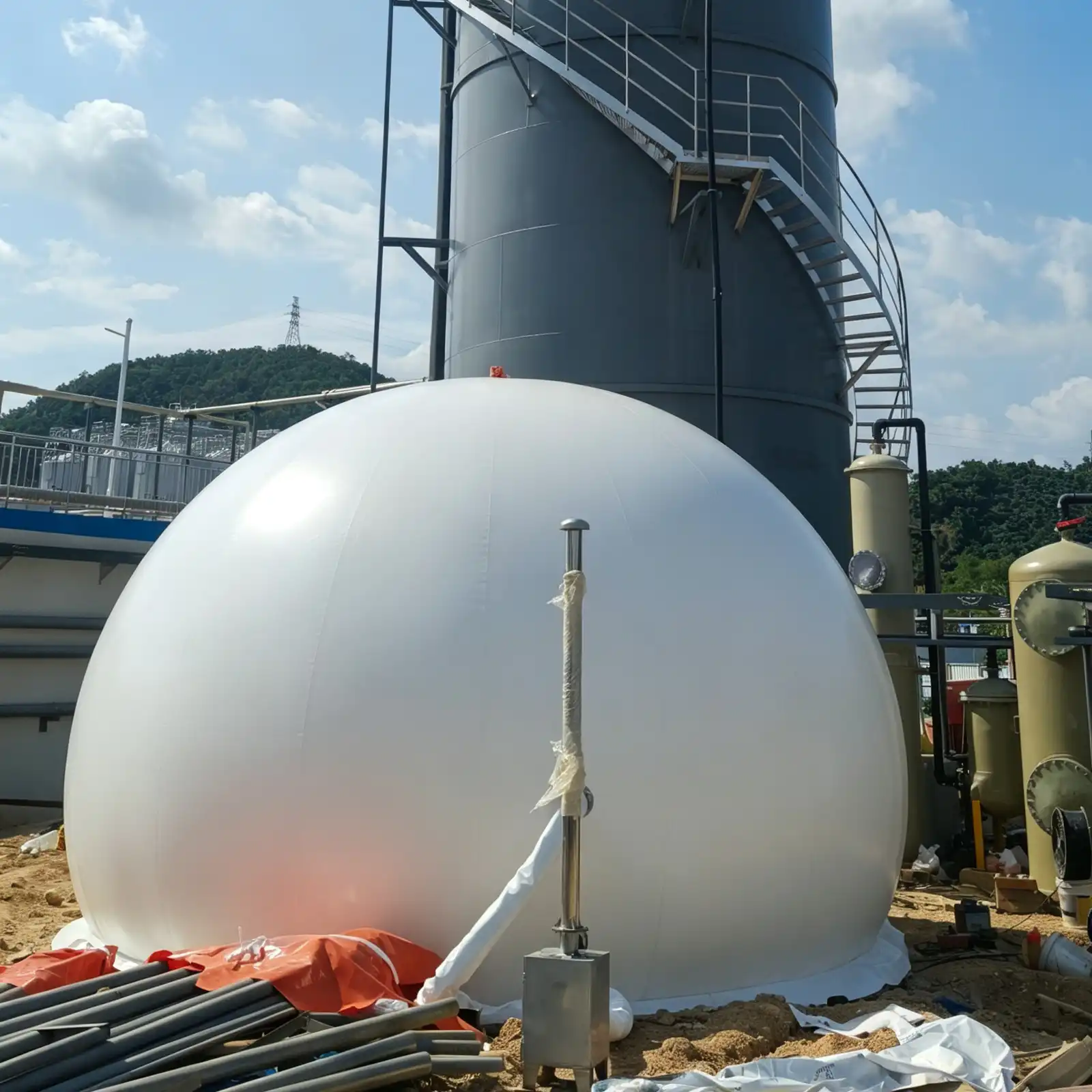

The gas-storage heart of this project: Qingdao HAIYUE’s Double Membrane Gas Holder.
Part 2 — What is a Double Membrane Gas Holder?
It’s a breathing gas cover that safely stores the biogas produced by anaerobic digestion.
Three components
· Outer membrane — wind/rain/UV shield; continuously holds positive pressure on the inner membrane, keeping hydrostatic balance
· Inner membrane — directly contacts biogas; expands & contracts with gas volume
· Bottom membrane — separates the foundation from inner & outer membranes; leak-proof, corrosion-resistant
Why breweries depend on it
Pain Point → Solution
| Pain Point | How the Double Membrane Solves It |
| Volatile biogas production | Adjustable volume — auto expands/contracts with output |
| Coastal salt spray | Specialized biogas membrane — salt-spray, UV, methane-permeation resistant |
| Typhoons / heavy storms | Outer membrane holds pressure — no deformation, no collapse |
| Limited footprint | 3/4 spherical shape — saves 60%+ land vs steel tanks |
| Long on-site construction | Factory-prefab + bolted on site — <50% of steel-tank installation time |
| High maintenance cost | Self-cleaning, anti-aging, anti-oxidation — virtually zero maintenance |
Part 3 — On-site at 100 m³: “HAIYUE-level detail”
This Sanya project — from delivery to commissioning — passed every test in one run.
Before delivery
· Membrane thickness, bolt specs, and anchoring system tailor-reinforced for Sanya’s specific salt-spray class, UV index, and wind load. Not a one-size-fits-all shipment.
During installation (senior site engineer on site)
· Anchoring system positioning accuracy: ±2 mm
· Positive/negative pressure water seal test: 100% leak-free
· Every bolt’s torque: logged individually, double-checked
· Control cabinet: dual-redundant signals (gas-holder pressure + inner membrane volume)
During commissioning (safety protection calibration)
· Prevents inner/outer membrane over-pressure
· Auto pressure-relief on abnormality
· Auto pressure-adjustment on gas-output fluctuation
At handover
· Complete installation log
· Commissioning report + effluent data
· Equipment operation training
· Lifetime remote support channel
“We don’t deliver a piece of equipment. We deliver 30 years of peace of mind.”
Part 4 — Why trust HAIYUE
Not every double membrane gas holder deserves the name HAIYUE.
Qingdao Haiyue Membrane Structure Co., Ltd.:
· Based in: Yanjialing Industrial Park, Chengma Road, Jimo District, Qingdao, China
· Founded: April 2012 — 14 years in the biogas industry
· Track record: 3,000+ sets installed worldwide — livestock farms, landfills, industrial wastewater, biomass gas, kitchen-waste biogas, and more
Certifications & credentials
· CE Certification (EU market access)
· ISO9001 Quality Management System
· High-Tech Enterprise
· Specialized & Innovative Enterprise (Qingdao)
· German design solutions + imported professional production equipment
Full product line — far beyond gas holders
Product → Application
Part 4— Final word
The 100 m³ Blue Ribbon Beer (Sanya) project is not an isolated case.
It is a snapshot of HAIYUE’s 3,000+ project experience, 20+year process mastery, and engineer-on-site guidance.
We believe: Great equipment + great people + great service = a project that stands 30 years.
If you are looking at biogas projects / double membrane gas holders / GFS tanks / UASB / CSTR / biogas desulfurization / CHP —
whether you are a design institute, EPC contractor, or end-user — Send us your specs. Tech proposal within 24 hours. Quotation within 48 hours.
